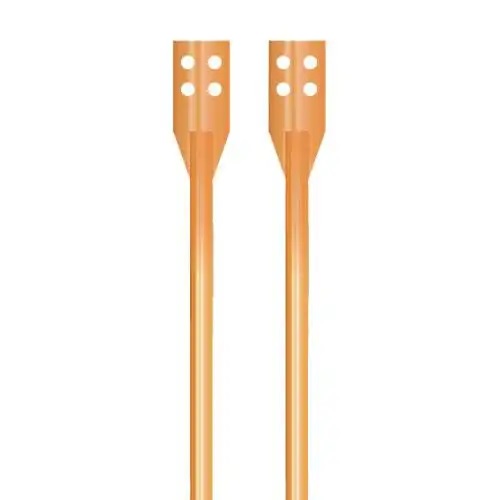

Copper Bonded Chemical Earthing Electrode
It is made from Low Carbon Steel & are molecularly coated with 99.9% pure electrolytic copper. It has high strength, excellent elasticity, good Conductivity & High Resistance. These Rods are Manufactured according to International Standards.
- 100 Microns coating on iron electrode.
- Design for fast fault current dissipation.
- Low maintenance on site.
- Easy and fast installation on site.
- Moisture Booster chemical bags provided for low earth resistance.
The Copper Layer is bonded to steel core through an electrolytic process that ensures a perfect and tough bonding between the steel and the copper. They are covered with copper to prevent exposure of the steel core to soil and moisture. It can resist corrosion better and has capacity of being driven to great depths.
It is made from Low Carbon Steel & are molecularly coated with 99.9% pure electrolytic copper. It has high strength, excellent elasticity, good Conductivity & High Resistance. These Rods are Manufactured according to International Standards.
Advantages
- Upto 250 microns Copper Bonding on Electrode
- Longer Life due to Process of Bonding Over Electrode
- Highly Conductive
- Due to plating cost effective
- Easy to Install
Specification
| Model | Length Mtr. | Terminal Size | Outer Pipe Diameter (min) mm | Inner Pipe |
|---|---|---|---|---|
| 40 MSECB | 1 , 2 & 3 | 40 x 6 | 40 | - |
| 50 MSECB | 1 , 2 & 3 | 40 x 6 | 48 | 25 |
| 80 MSEGB | 1 , 2 & 3 | 50 x 6 | 76 | 48 |
| 88 MSEGB | 1 , 2 & 3 | 50 x 6 | 88 | 48 |

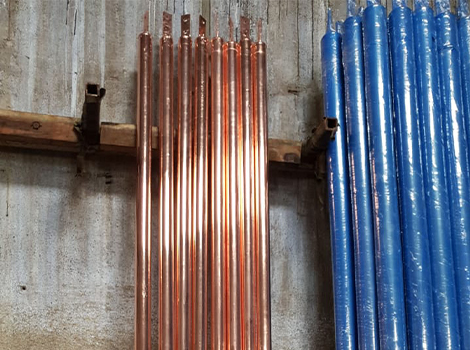

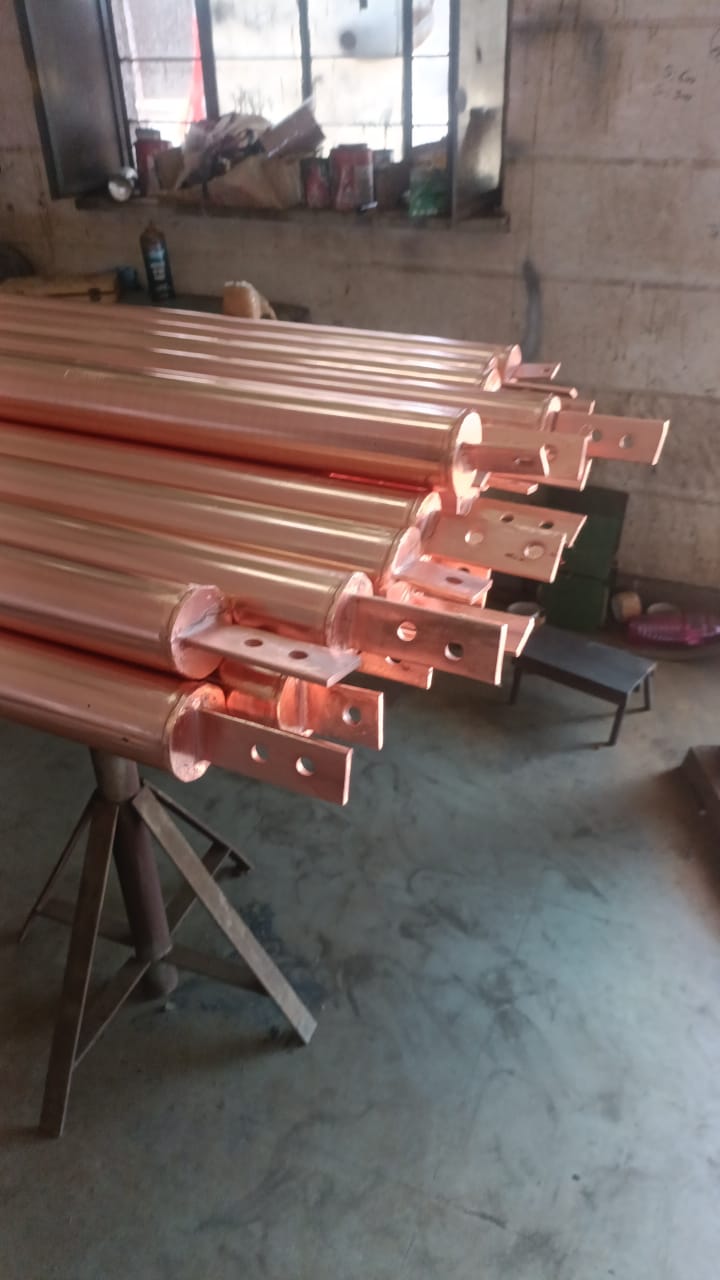

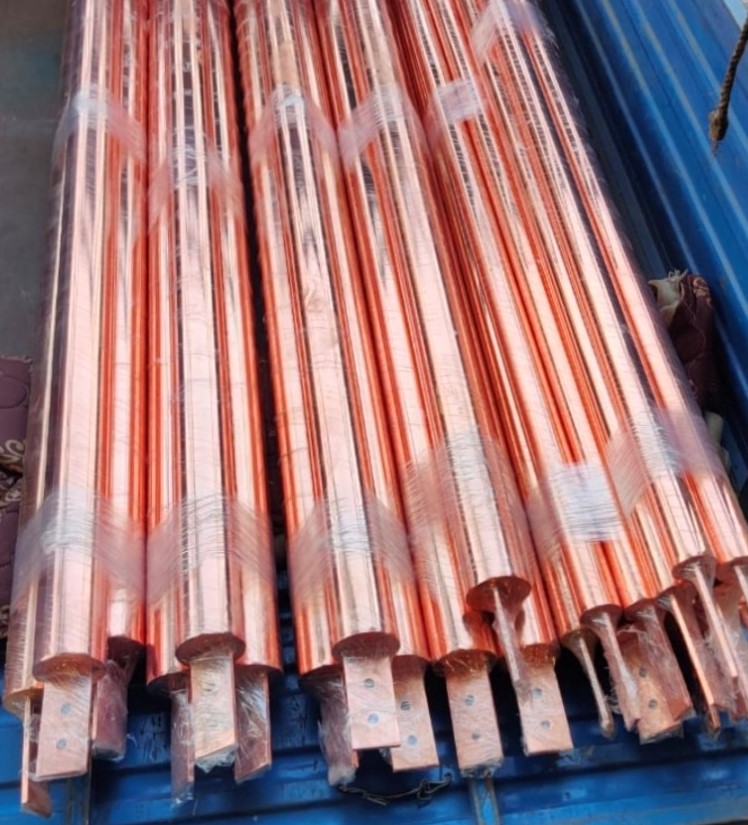

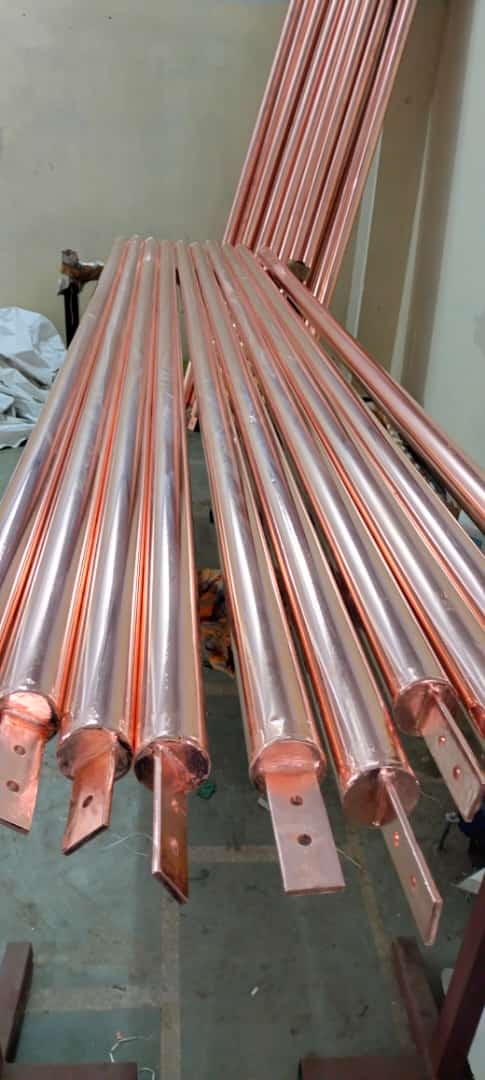

Gallery
