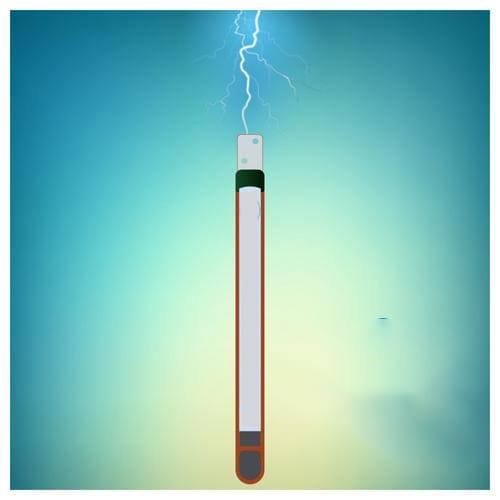

Maintenance Free Earthing Electrode
We are Manufacturer, Supplier and Exporter of GI Chemical Earthing Electrode and our setup is situated in Pune, Maharashtra, India. We try to provide best Sefety Solution to our valuable customers It is made from low carbon steel with a high tensile strength of at least 600 N/mm2.
- High working life
- Reliability
- Designed for fast fault current dissipation.
- Required Low maintenance and low space requirement.
- Easy and Fast installation
- Moisture booster chemical bag provided for low earth resistance
- No need to pour water
Advantages
- One pipe is inserted inside another for enhanced conductivity and durability.
- Both inner and outer pipes are galvanized to prevent corrosion.
- Pipes conform to IS 1239 (Medium Class) as per IS 3043 Earthing Manual
- The inner space is filled with a highly conductive crystalline compound to reduce internal resistance.
Specification
| Specification | Details |
|---|---|
| Brand Name | Micro Sense |
| Diameter | 48.5, 60, 80 mm |
| Length | 2000 & 3000 mm |
| Material | Low carbon mild steel (Galvanized) |
| Wall thickness of pipe | 1.4 - 3.25 mm |
| Tolerance | 5% |
| Mark on pipe | ISI Marked Pipe |
| Coating | 80 / 100 microns |
| Terminal size | 32x6, 40x6, 50x6 & 75x10 mm |
| Terminal Hole | 10 mm & 12 MM |
| C.S Area | 872 mm² |
| Fault Current peak | 40 - 60 kA |
| Fault current RMS | 20 - 40 kA |
